JG100Z Hydraulic Grapple Machine for Sale Agriculture
Brand :JINGGONG
Product origin :CHINA
Delivery time :30DAYS
Supply capacity :5000 UNITS
JG100Z hydraulic grab machine for efficient agricultural loading is in stock and available for direct sale

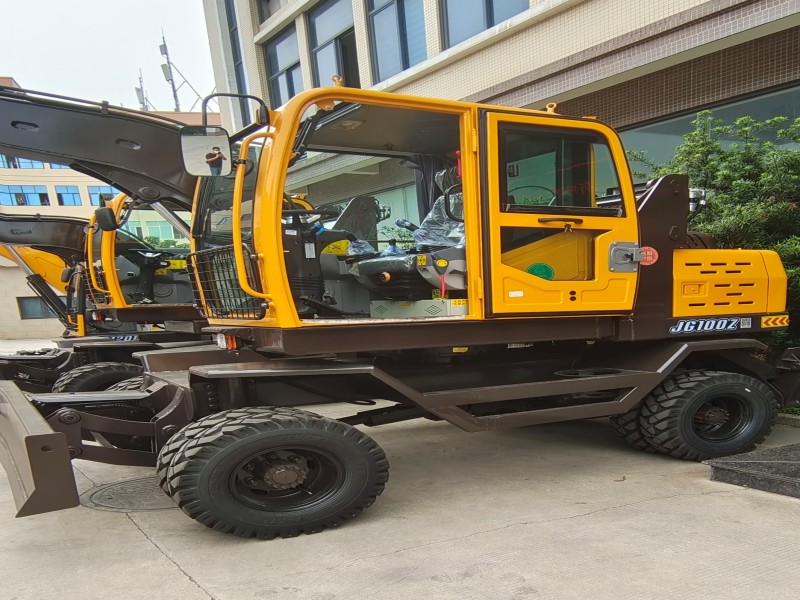

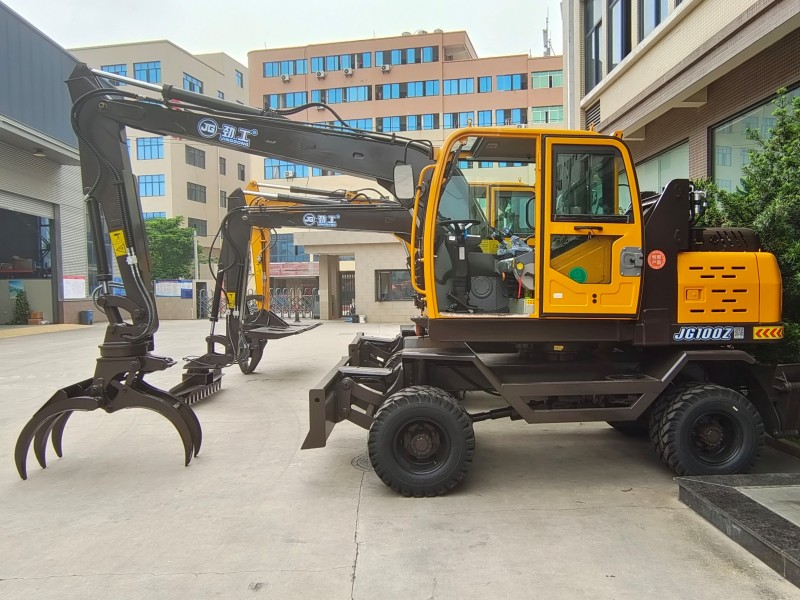

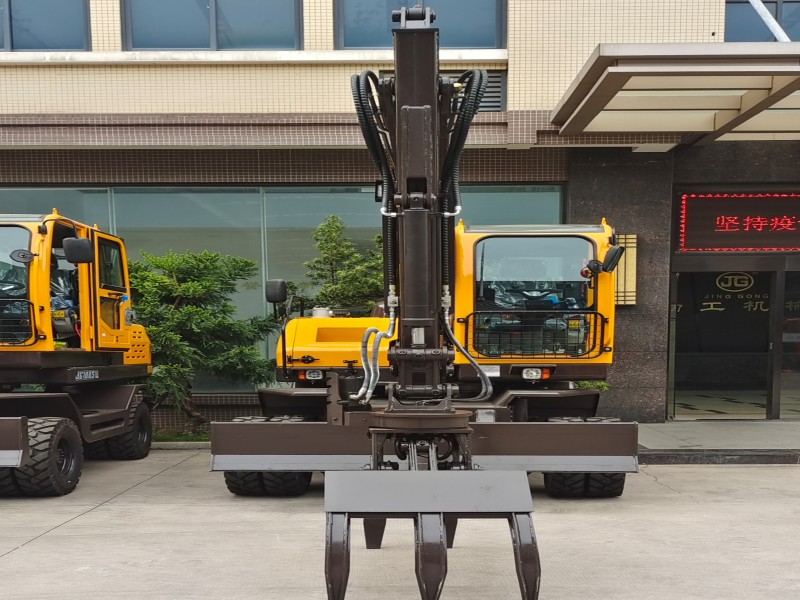

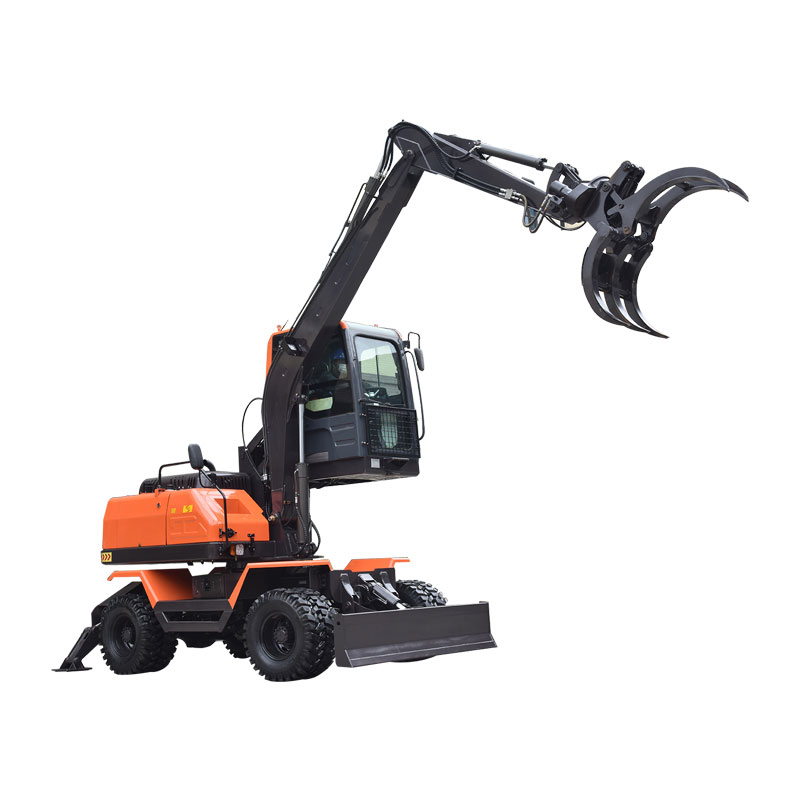

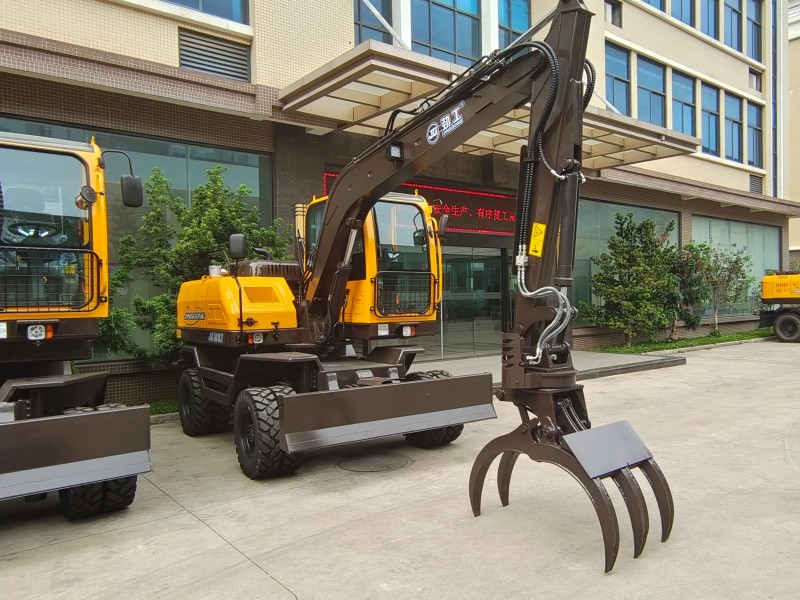

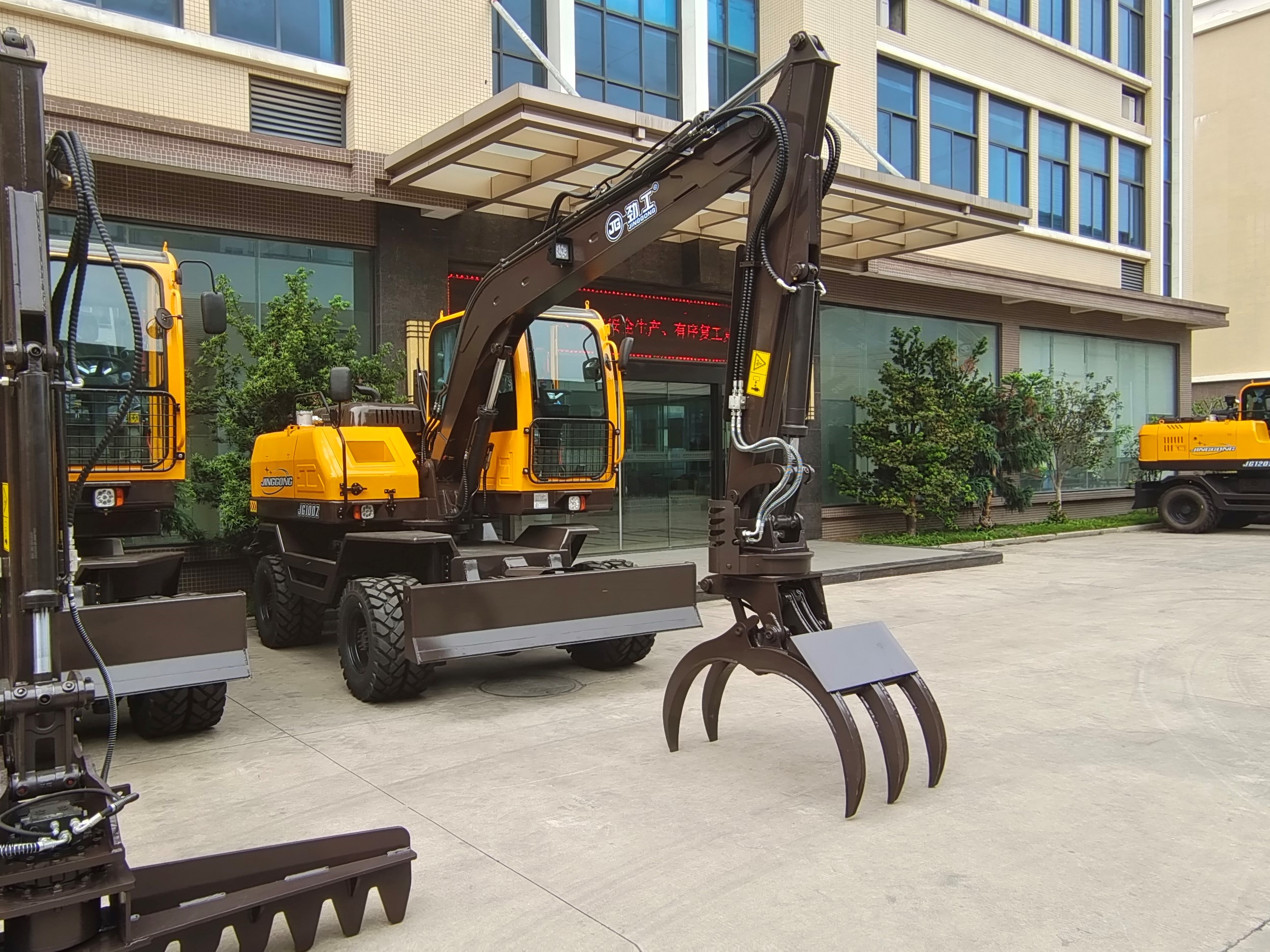

JG100Z Grapple Excavator for loading sugarcane in South of America
JG100Z grapple wheel excavator is installed with 65KW turbocharged engine and 360°rotary grab, realizing a grab capacity of 0.5-0.6 tons.
This kind of wheeled excavator is suitable for the collecting and place of woods and sugarcanes. It not only achieves good sales at home, but also finds huge markets in Southeast Asia, Saudi Arabia and more.
| SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom length | 4200mm | ||||||||
| Arm length | 2000mm | |||||||||
| Maximum Digging Reach | 7200mm | |||||||||
| Maximum Digging Depth | 4500mm | |||||||||
| Maximum Digging Force | 90KN | |||||||||
| Maximum Digging Height | 7600mm | |||||||||
| Maximum Dumping Height | 5600mm | |||||||||
| Back-end radius of gyration | 2250mm | |||||||||
| DIMENSION | (Length*width*height) travel position | 7500*2460*2920mm | ||||||||
| Wheel base | 2850mm | |||||||||
| Width Of Crawler | 500mm | |||||||||
| Ground clearance of counterweight | 900mm | |||||||||
| Min ground clearance | 420mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 23500kg | |||||||||
| Engine model | Cummings4BTAA3.9 | |||||||||
| Rated Power | 85KW | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Hydraulic system working pressure | 28Mpa | |||||||||
| Hydraulic system flow | 270L/min | |||||||||
| Variable piston pump | 2*63ml/r | |||||||||
| Max Hauling force | 76.5KN | |||||||||
| (High speed/Low speed) | 5km/h/2.9km/h | |||||||||
| Grade Climbing ability | 70%/35° | |||||||||
| Volume Of Bucket | 0.5m3 | |||||||||
| Revolution Overdrive Pressure | 25Mpa | |||||||||
| Full circle swinging time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥8L/h | |||||||||
| Capacity Of The Fuel Tank | 226L | |||||||||
| Hydraulic Tank Capacity | 227L | |||||||||
We are very glad to got new member of JINGGONG Global Faminly, and we hope we will have more and good cooperation in Ecuodor market, also we will give more support to our brother company, working together in this excavator, wheel excavator, crawler excavator, grapple excavator, sugarcane harvester machine etc all construction machines that we produce.
we are also very confidence with our business partner, and we will working hard together, to develop good market for JingGong machinery in South of Aemrica market.
