JG75L Low Emission Crawler Excavator for Sale CE Certified Hydraulic System
Brand :JINGGONG
Product origin :CHINA
Delivery time :15DAYS
Supply capacity :8000SETS
The JG75L low-emission crawler excavator hydraulic system with CE certification is environmentally friendly, efficient and in high demand

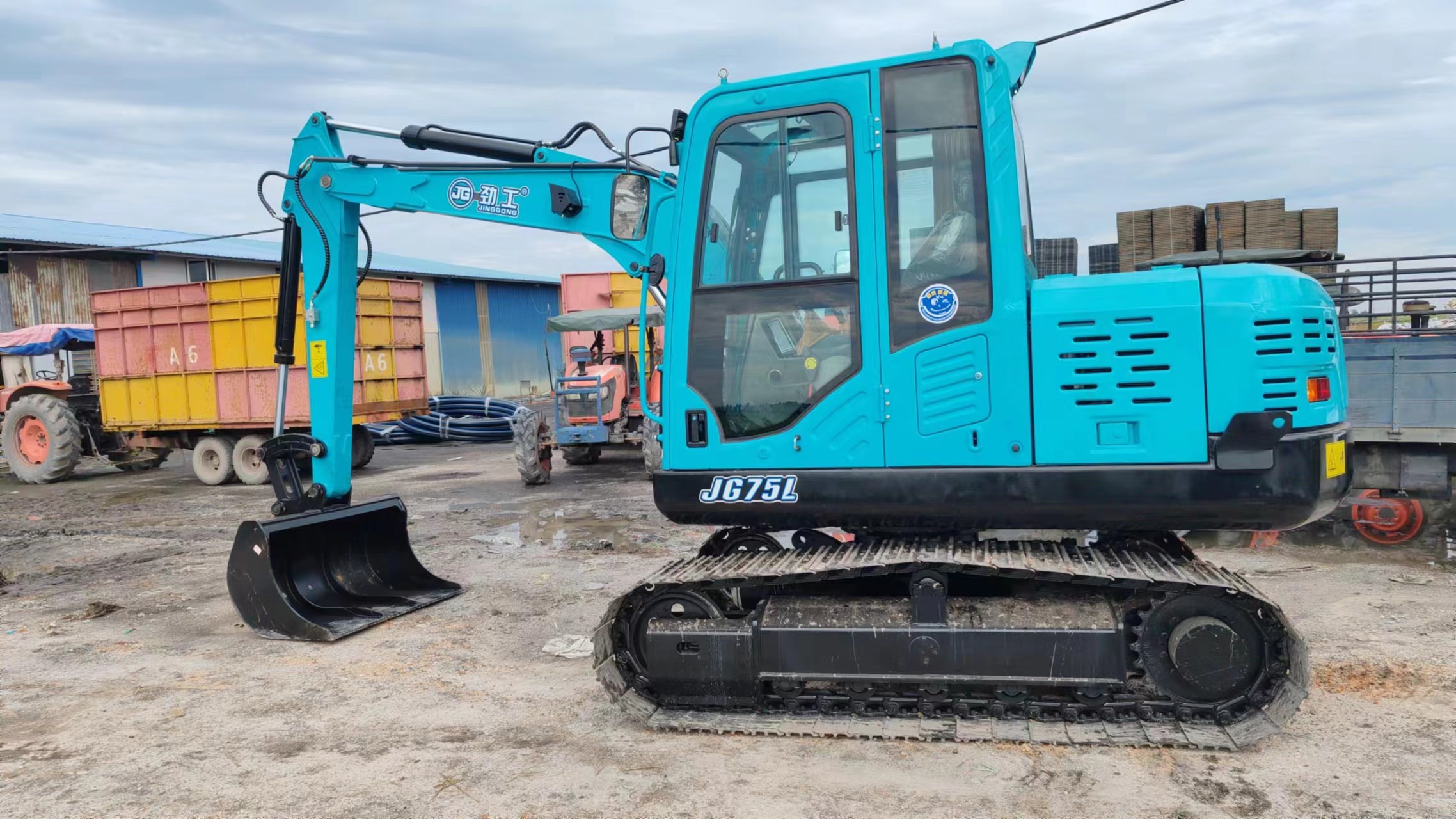

JG75L Crawler Excavator
| SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom length | 3300mm | ||||||||
| Arm length | 1850mm | |||||||||
| Maximum Digging Reach | 6350mm | |||||||||
| Maximum Digging Depth | 3570mm | |||||||||
| Maximum Digging Force | 45KN | |||||||||
| Maximum Digging Height | 6600mm | |||||||||
| Maximum Dumping Height | 4500mm | |||||||||
| Back-end radius of gyration | 1800mm | |||||||||
| DIMENSION | (Length*width*height) travel position | 5500*2100*2650mm | ||||||||
| Distance From The arm to Rotate Machine | 3600mm | |||||||||
| Gauge base | 2060mm | |||||||||
| Track Gauge | 1570mm | |||||||||
| Width Of Crawler | 400mm | |||||||||
| Ground clearance of counterweight | 780mm | |||||||||
| Min ground clearance | 280mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 6300kg | |||||||||
| Engine model | YN36GB2/4102 | |||||||||
| Rated Power | 58.8KW | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Hydraulic system working pressure | 20Mpa | |||||||||
| Hydraulic system flow | 120L/min | |||||||||
| Metering gear pump | 2*28ml/r | |||||||||
| Max Hauling force | 45KN | |||||||||
| (High speed/low speed) | 4.5/2.5km/h | |||||||||
| Grade Climbing ability | 70%/35° | |||||||||
| Volume Of Bucket | 0.25m3 | |||||||||
| Revolution Overdrive Pressure | 16Mpa | |||||||||
| Full circle swinging time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥4L/h | |||||||||
| Capacity Of The Fuel Tank | 110L | |||||||||
| Hydraulic Tank Capacity | 110L | |||||||||
Get the latest price? We'll respond as soon as possible(within 12 hours)
