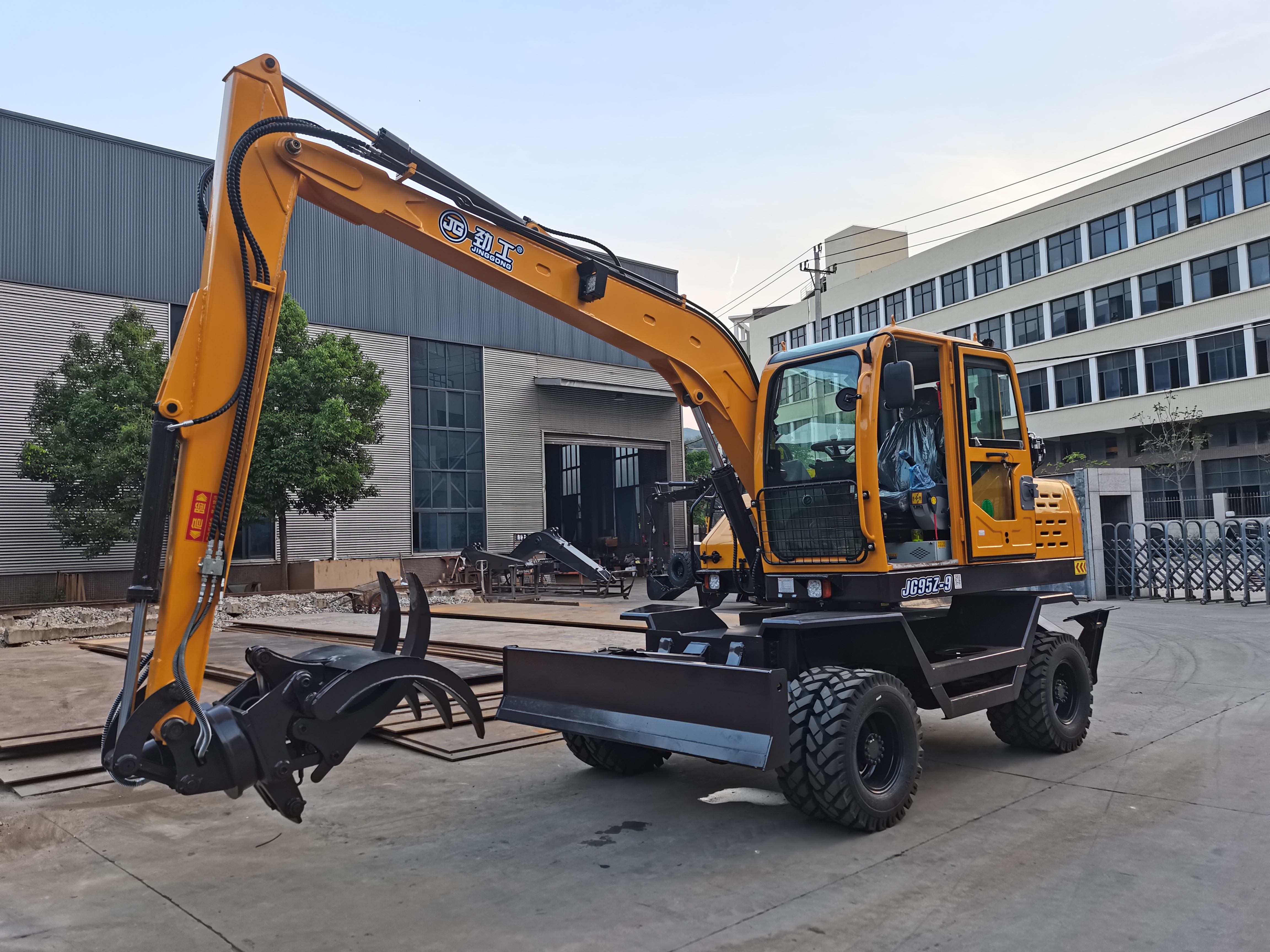

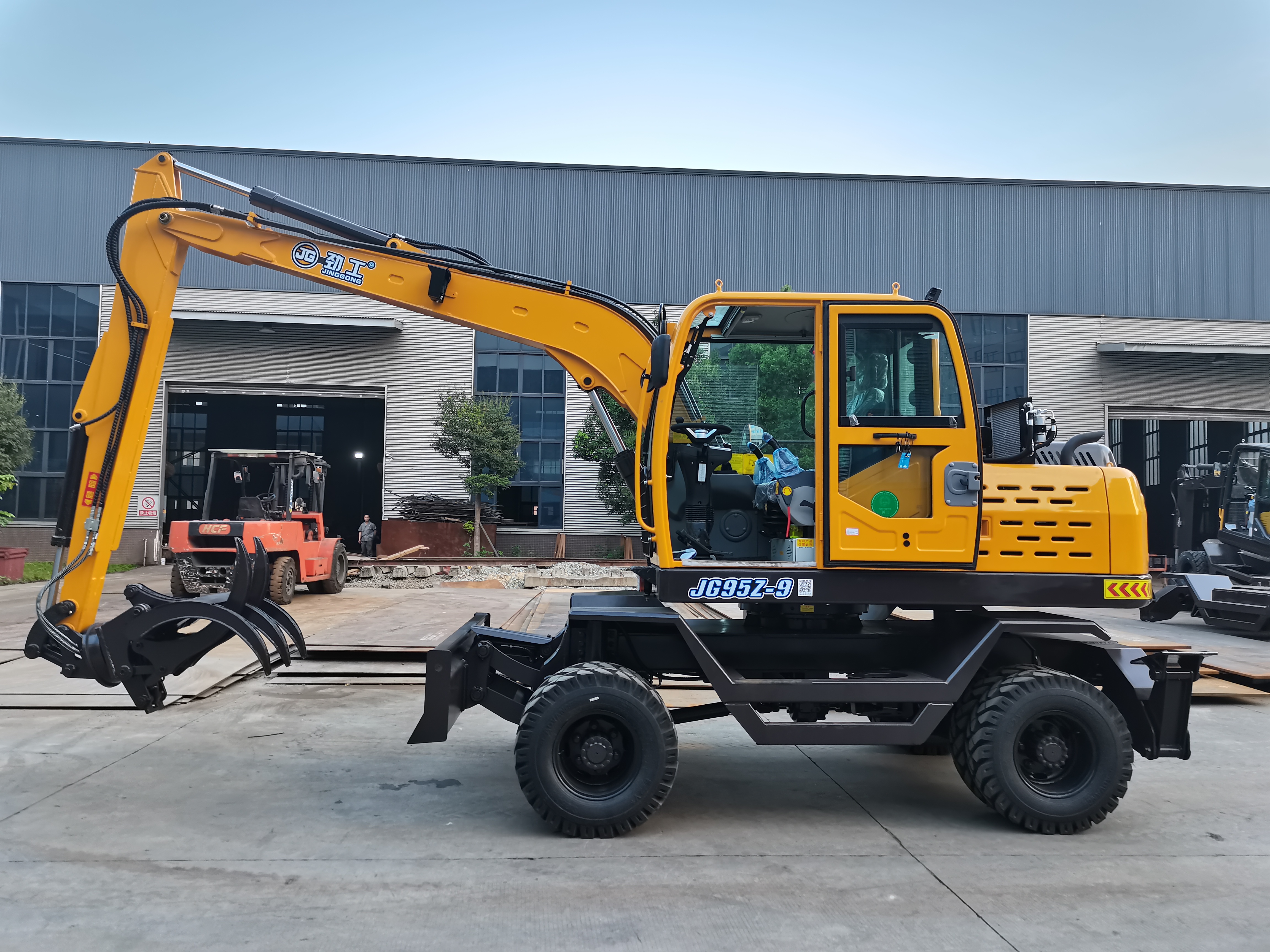

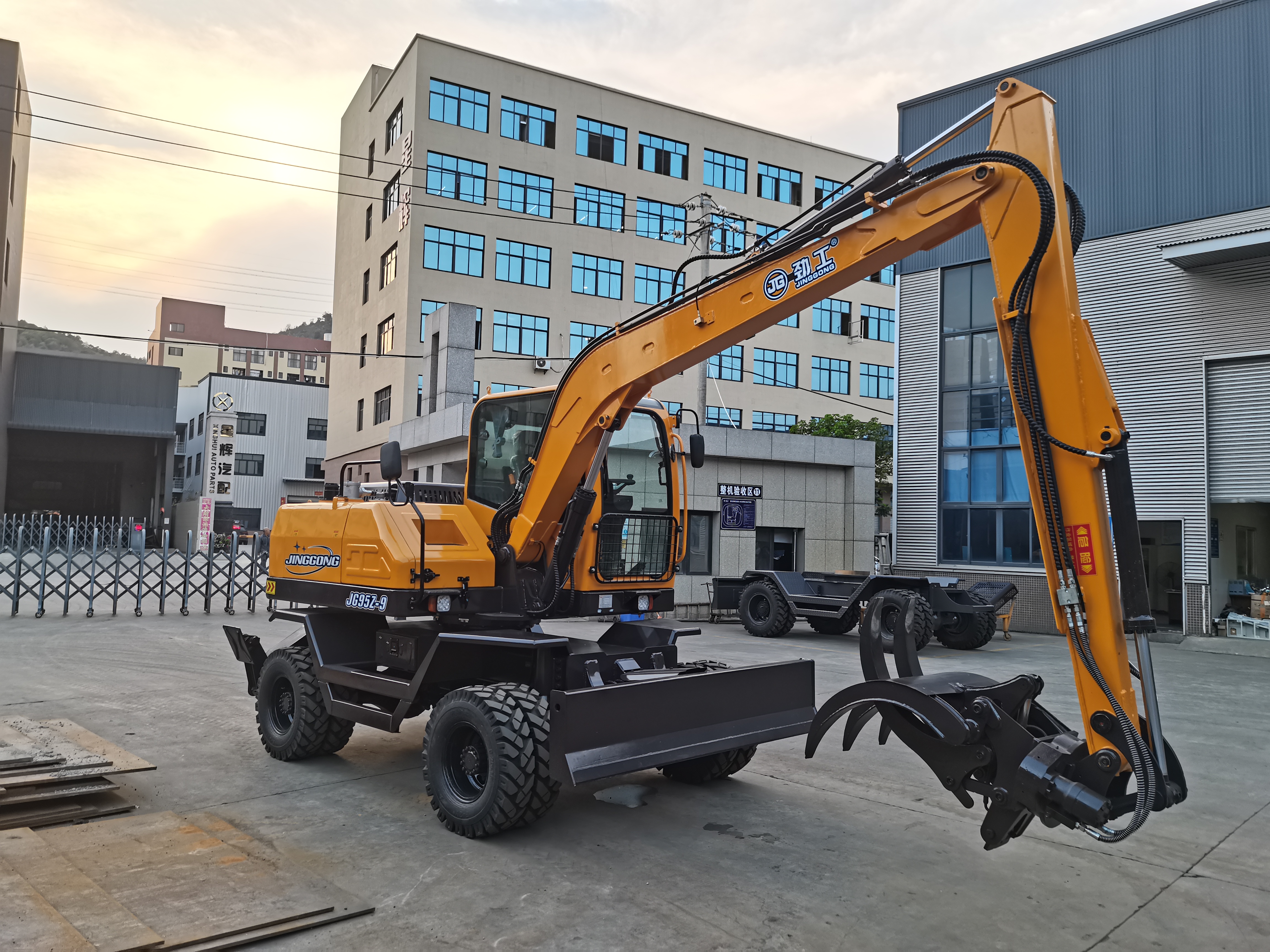

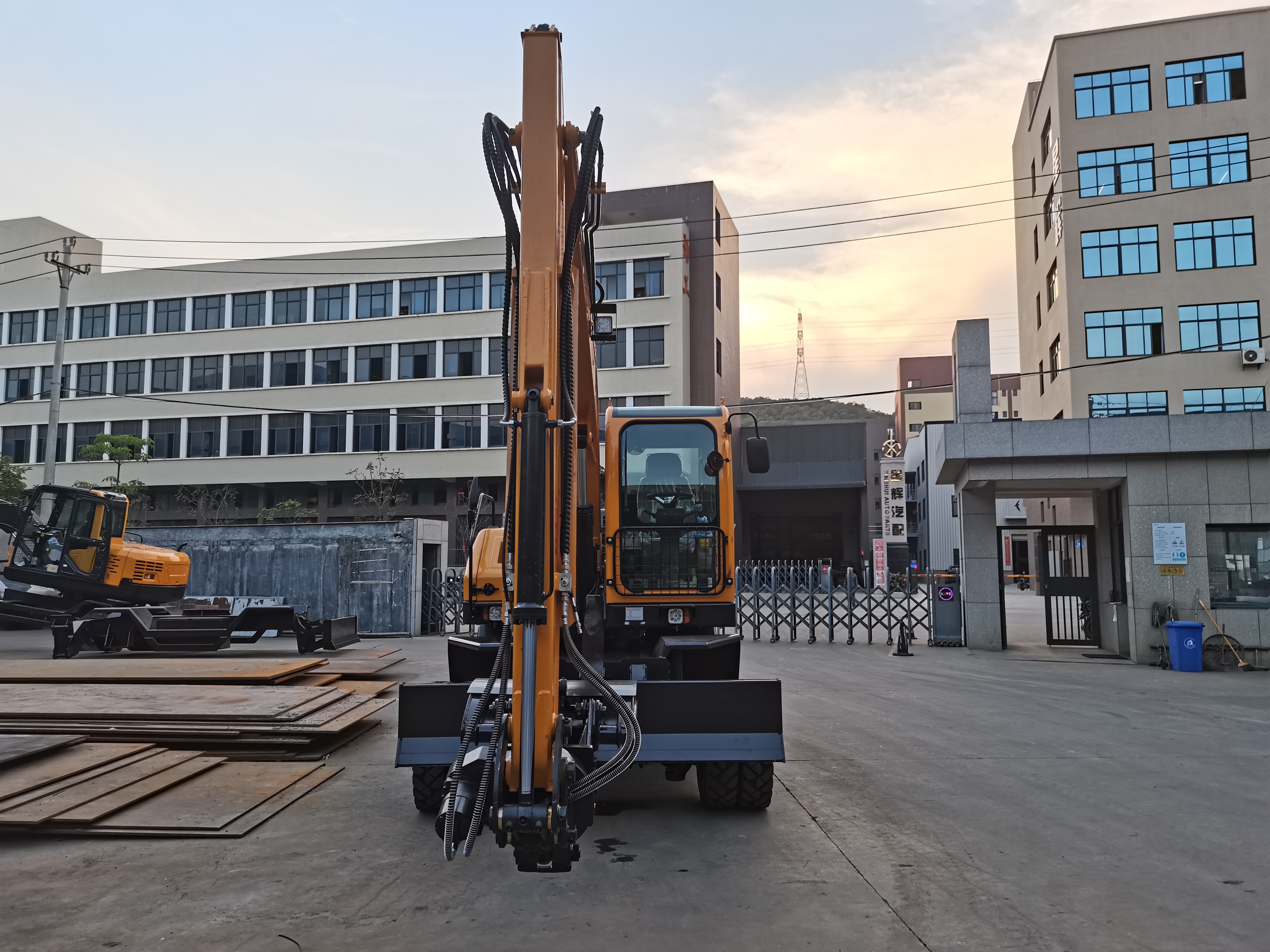

JG95Z-9 forestry excavator, equipped with a 360° rotatable bucket
Brand :JINGGONG
Product origin :CHINA
Delivery time :15DAYS
Supply capacity :5000 UNITS
360° all-directional rotating bucket, making forestry operations more flexible and efficient!
Designed specifically for the forestry environment, it can easily handle complex terrains and dense trees, enhancing operational convenience and saving time and manpower.
| SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom Length | 4000mm | ||||||||
| Arm Length | 2600mm | |||||||||
| Max Digging Radius | 7500mm | |||||||||
| Grab The Biggest Opening Width | 1250mm | |||||||||
| Grab The Minimum Opening Width | 80mm | |||||||||
| Maximum Radius Weight Capacity | 400kg | |||||||||
| Grapple Rotation Angle | 360° | |||||||||
| Max Dumping Height | 5500mm | |||||||||
| Back-End Radius Of Gyration | 1980mm | |||||||||
| Bucket capacity | 0.3m3 | |||||||||
| DIMENSION | (Length*width*height) travel position | 6450*2300*2930mm | ||||||||
| Wheel base | 2400mm | |||||||||
| Track(Front/rear) | 1660mm/1580mm | |||||||||
| Ground clearance of counterweight | 1060mm | |||||||||
| Min ground clearance | 265mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 8360kgs | |||||||||
| Engine model | YN4L092-33CR Engine | |||||||||
| Rated Power | 65KW | |||||||||
| Rated Speed | 2400r/min | |||||||||
| Hydraulic system working pressure | 20Mpa | |||||||||
| Hydraulic system flow | 150L/min | |||||||||
| Variable piston pump | 71ml/r | |||||||||
| Grapple Swing Speed | 12r/min | |||||||||
| Walking speed | 25km/h | |||||||||
| Grade Climbing ability | 58%/30° | |||||||||
| Tyre model | 825-16 | |||||||||
| Revolution Overdrive Pressure | 16Mpa | |||||||||
| Full circle swinging time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥4L/h | |||||||||
| Hydraulic Tank Capacity | 110L | |||||||||
| Capacity Of The Fuel Tank | 110L | |||||||||
